Non Corrosive Controls Lines for the Oil Exploration Industry

Cross Coupling Control Line and Cable Protectors

NCCL Ltd Protectors are manufactured from high integrity carbon steel ASTM A216 grade WCB to NACE MR-01-75/ latest edition, suitable for sour gas service with Rockwell hardness below HRC 22. Protectors can also be made in a range of other materials including stainless steel and nickel chromium steels.

Gives maximum cable and control line protection across the coupling being the most vulnerable point.
Easy and rapid installation with pre-engaged swing bolt locking mechanism.
Streamline design to avoid damage and hang-ups while running in hole.
Designed and tested to withstand high axial and rotational forces, preventing slippage and twisting of lines.
"Interlock" feature protects bolts from shear stress
No loose fittings or capscrews to fall out during or after installation.
Protectors are designed and tested to support a minimum of 50 lbs or 100 feet of control line or cable.
All metal design meets NACE MR-01-75/latest edition for sour gas services.
Available for most control line and cable configurations.
Available in carbon steel, stainless steel and high nickel alloy grades.
Totally re-usable, inspection and refurbishment service available.

Strap Type Cross Coupling Protectors

All Cast Cross Coupling Protectors

Proven performance under test and in the field

NCCL Ltd Protectors are manufactured from high integrity carbon steel ASTM A216 grade WCB to NACE MR-01-75/current, suitable for sour gas service with Rockwell hardness below HRC 22. Protectors can also be made in a range of other materials including stainless steel and nickel chromium steels.

PROTECTOR TYPE	ALL CAST CROSS COUPLING	STRAP TYPE CROSS COUPLING	SPECIAL MID JOINT
Axial proof load	30 tons	30 tons	6 - 7 tons
Rotational proof load	3 tons	3 tons	3 tons
Crush proof load	20 tons	20 tons	20 tons
Average installation time	14.1 seconds	15.7 seconds	15 seconds

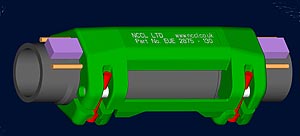

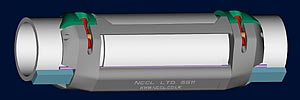

All Cast Cross Coupling Protector

NCCL Ltd normally supply all-cast Protectors as standard production.

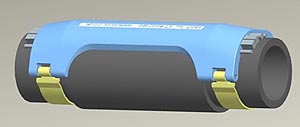

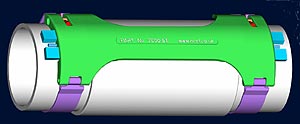

Strap Type Cross Coupling Protector

Designed for tight annular spaces, this protector offers excellent protection, each protector is drifted before despatch.
